Purchase Components

Some of the links below will take you to eBay, where I may earn a small commission. This does not affect the price you pay.

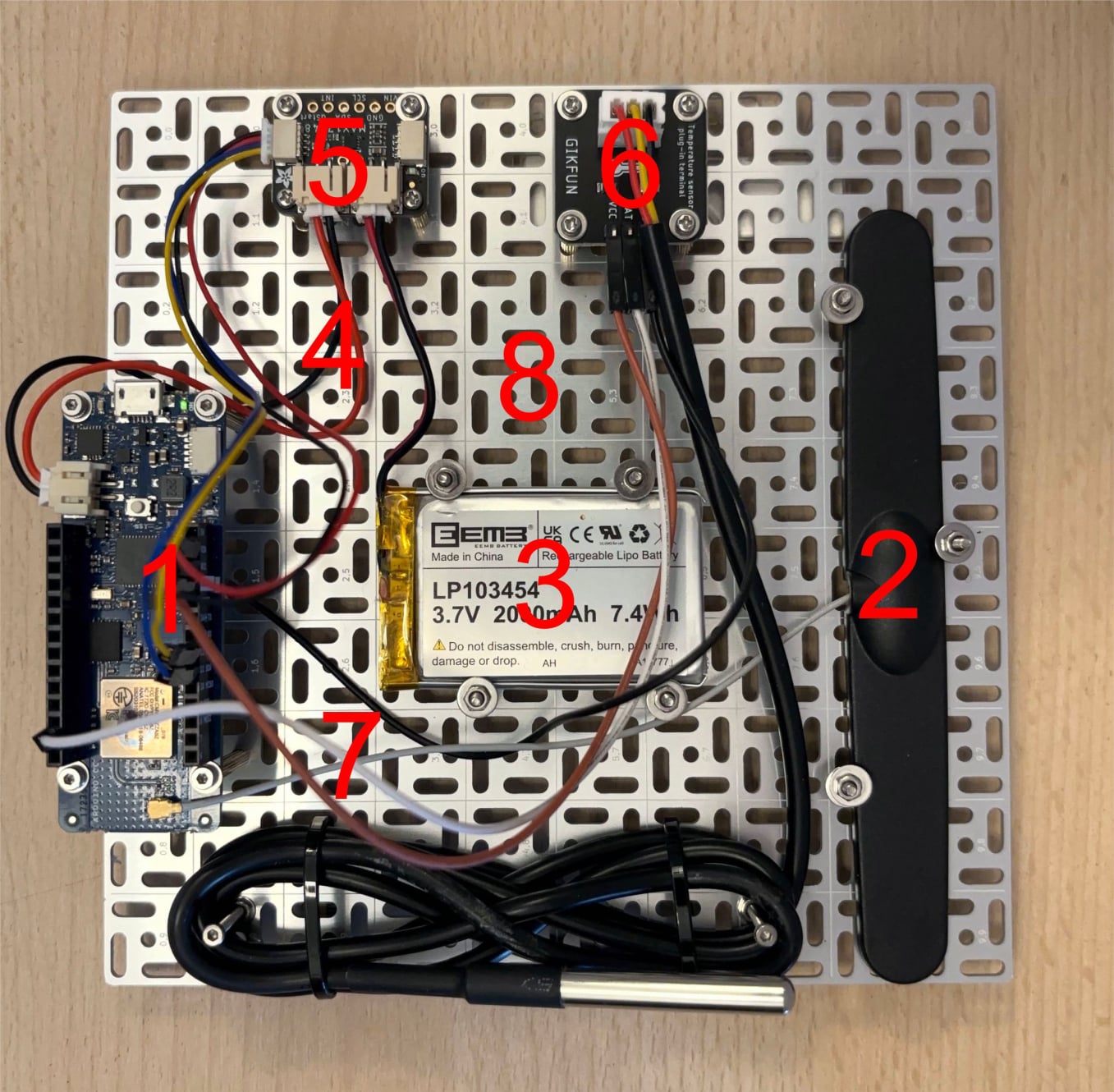

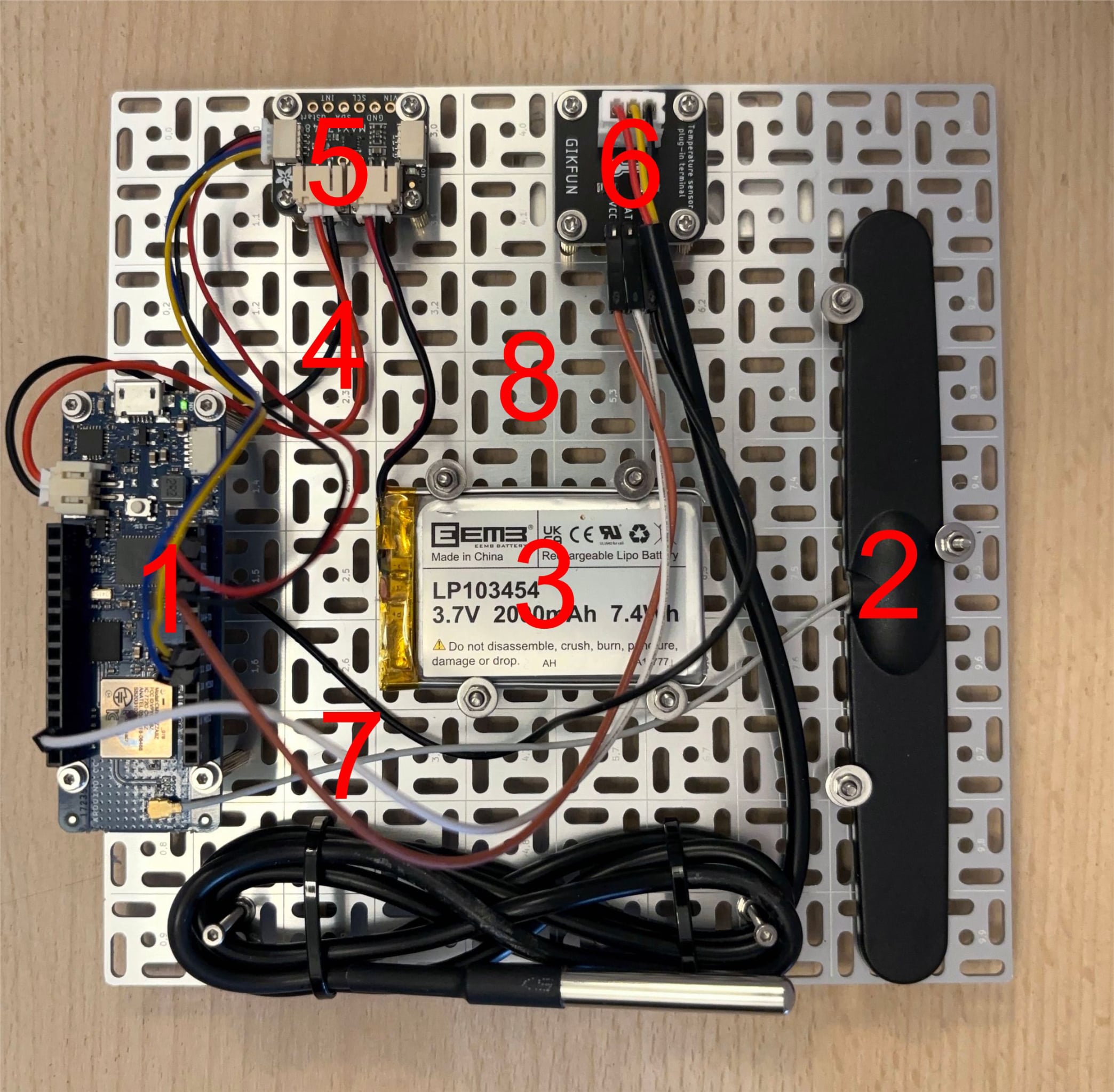

Components on baseboard

Below are the components you need to complete the 'core' project as featured in the tutorials.

  1. Arduino MKR WAN 1310 This is the micro controller board we are using.
  2. Antenna for MKR WAN 1310 If your MKR WAN 1310 is not supplied with an antenna, you will need this.
  3. EEMB Lithium Polymer battery 3.7V 2000mAh 103454 Lipo Rechargeable Battery Pack. This is the battery we will be using.
  4. JST-PH 2-pin Jumper Cable 100mm long. Select the 10cm 2 pin option.
  5. Adafruit MAX17048 LiPoly/LiIon Fuel Gauge and Battery Monitor. This is the battery monitor we will be using.
  6. Waterproof DS18B20 temperature probe kit. This kit is supplied with the required pullup resistor to connect to the Arduino.
  7. Jumper wires with Dupont fittings. For making connections to pins on the Arduino. Get a pack with assorted ends.

Other items:

  • Micro USB cable To connect your Arduino to your computer.
  • Mounting Grid. (Optional) This is the baseboard you can see in the image. This item is supplied by The Pi Hut.
